sales@altabreed.com Air-Cooled Chiller UAE - TABREED NEXUS AC Series
Reliable Cooling for Commercial and Industrial Applications
Some sites cannot afford cooling downtime. A hotel during peak summer. A factory running continuously under high process loads. A hospital, school, shopping mall, or commercial building that depends on reliable cooling throughout the day.
Al Tabreed supplies the TABREED NEXUS AC Series, a range of packaged air-cooled screw chillers for commercial and industrial applications across the UAE and Oman.
Sourced from a trusted manufacturing partner and supported locally by our Sharjah team, the TABREED NEXUS is built for the demands of Gulf ambient conditions, not a unit designed for a milder climate and simply adapted for the region.
With 19 standard models covering a nominal cooling range of 44 to 468 TR, and selected configurations extending toward 502 TR, the series provides a broad range of capacities for demanding cooling applications. Every unit is T3 tropical rated, with performance data available for ambient temperatures up to 52°C.
the TABREED NEXUS is an air-cooled packaged screw chiller series with a nominal range of 44 to 468 TR.
What Is an Air-Cooled Chiller?
An air-cooled chiller is a packaged refrigeration system that removes heat from a chilled-water circuit and rejects that heat directly to the outside air through condenser coils and fans.
Unlike water-cooled systems that typically require additional cooling-tower infrastructure, an air-cooled chiller combines the refrigeration system, condenser and controls within a packaged unit, making it suitable for many commercial and industrial installations.
In the UAE, the key challenge is not simply producing cooling, it is maintaining reliable performance when outdoor temperatures remain extremely high for long periods.
The TABREED NEXUS AC Series is designed for T3 tropical conditions and suitable for high-ambient operation up to 52°C, helping the system meet the demanding operating conditions encountered across the Gulf. Electronic expansion control, condenser pressure control and semi-hermetic screw compressors are features supporting part-load performance and high-ambient operation.
The TABREED NEXUS AC Series
The TABREED NEXUS combines high-ambient capability with robust refrigeration components, dual-circuit redundancy, advanced controls and BMS connectivity.
-
COMER Semi-Hermetic Screw Compressors:
TABREED NEXUS chillers use COMER semi-hermetic screw compressors with an advanced 5:6 ratio screw rotor profile. The compressors provide step-less capacity control through a sliding valve and are designed for strong part-load performance. Each chiller is equipped with two independent refrigerant circuits, providing redundancy so scheduled service on one circuit does not necessarily take the entire chiller out of operation. The compressor design also incorporates protective features including motor winding temperature protection, discharge temperature protection, phase reversal and phase failure protection, and oil-level protection. -

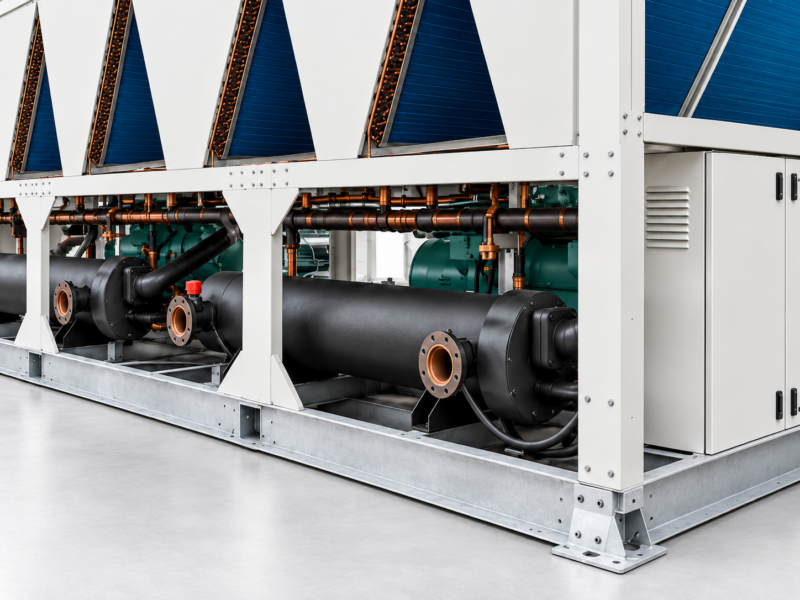

Evaporator / Cooler:
The TABREED NEXUS range uses DX cooler configurations designed for efficient heat transfer and serviceability. Across most of the range, direct-expansion shell-and-tube coolers, designed with straight tubes to allow easier internal tube cleaning. The evaporators are factory insulated and are designed for maximum working pressures of 16 bar on the shell side and 23 bar on the tube side, with CE and ASME certification. For technical accuracy across the complete range, cooler construction varies by model: brazed-plate coolers for AC-45 and AC-60, with shell-and-tube coolers used on subsequent models. . -

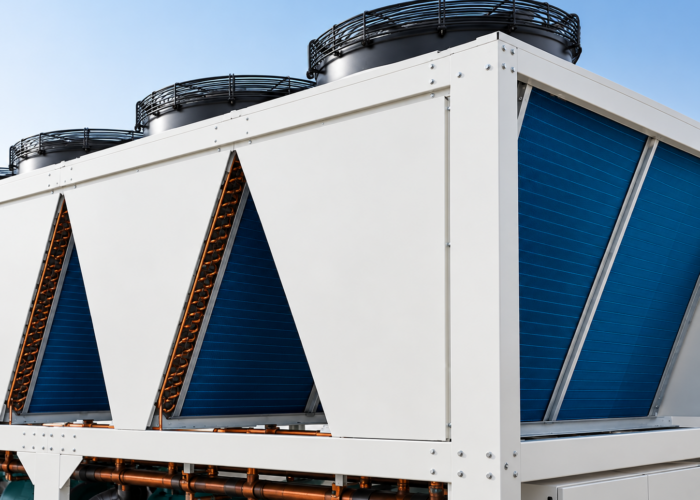

High-Efficiency Condenser Coils:
The condenser uses a V-shaped, multi-pass design to provide a large heat-transfer surface and support efficient operation under high ambient conditions.
Standard condenser construction includes:
- Pre-coated louvered aluminium fins at 14 FPI
- Seamless, oxygen-free internally grooved copper tubes
- Mechanical bonding between fins and tubes
- Leakage testing up to 35 bar
- External-rotor axial condenser fans
Optional condenser configurations include hydrophilic aluminium fins, Heresite-coated aluminium fins, copper fins and electro-tinned copper options for applications requiring additional corrosion protection.
-
R134a Refrigerant:
The TABREED NEXUS AC Series uses R134a refrigerant across the range.
The refrigeration circuits include the compressor with built-in oil separator, high-side pressure relief devices, liquid-line shut-off valves, economizer, filter driers, electronic expansion device and the required R134a refrigerant and compressor-oil charge. -

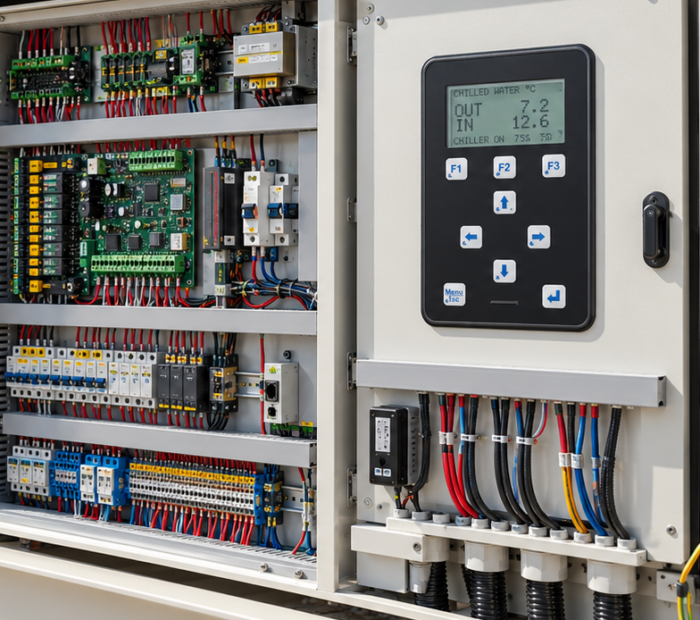

Advanced Controls and BMS Connectivity:
The TABREED NEXUS uses a MAGNUM microprocessor-based controller with keypad display for monitoring and control of chiller operation.
The controller can display operating information including:
- Temperature and pressure readings
- Compressor current
- Compressor operating status
- Run time
- Demand capacity
- Percentage loading
- System alarms and alerts
The system is BMS-ready and supports:
- BACnet IP
- Modbus RTU
- Modbus TCP/IP
- Johnson N2
Optional remote monitoring is also available using VPN and the controller’s built-in Ethernet connection.
-
Compact and Modular Design:
The TABREED NEXUS has been developed with a compact footprint to simplify site installation.
For larger units starting from AC-195-T3-50-R134a, the chiller can be shipped in two sections to support safer and more practical lifting and handling at site.
Capacity Range
The TABREED NEXUS AC Series covers 19 standard models across a wide cooling range.
Selected models are shown below. The complete range and project-specific performance data are available on request.
| Model | Nominal Cooling Capacity | COP |
| AC-45-T3-50-R134a | 44.07 TR / 155.0 kW | 2.73 |
| AC-100-T3-50-R134a | 98.35 TR / 345.9 kW | 2.90 |
| AC-150-T3-50-R134a | 139.07 TR / 489.1 kW | 2.98 |
| AC-220-T3-50-R134a | 206.34 TR / 725.7 kW | 2.95 |
| AC-345-T3-50-R134a | 328.26 TR / 1154.5 kW | 2.96 |
| AC-500-T3-50-R134a | 468.27 TR / 1646.9 kW | 2.92 |
Nominal capacities are 35°C ambient, 7°C leaving chilled-water temperature and a 5°C temperature difference across the cooler
Why Choose TABREED NEXUS Air-Cooled Chillers?
-
Dual-Circuit Redundancy
Each chiller has two independent refrigerant circuits, helping maintain greater operational flexibility during scheduled servicing or maintenance of an individual circuit. -
Strong Part-Load Performance
Semi-hermetic screw compressors, electronic expansion control and compressor capacity modulation help the chiller respond to changing cooling demand rather than operating continuously at full capacity. -
BMS-Ready Controls
BACnet IP, Modbus RTU, Modbus TCP/IP and Johnson N2 connectivity allow integration with building and facility management systems, while optional remote monitoring provides additional visibility into chiller operation. -
Compact, Modular Construction
A compact design reduces installation footprint, while larger units from AC-195 upward can be shipped in two sections to simplify lifting and site handling. -
Local Supply and After-Sales Support
Al Tabreed serves as your local point of contact in the UAE for TABREED NEXUS unit supply, spare parts and after-sales support.
Rather than requiring customers to coordinate directly with an overseas manufacturer, our Sharjah team works with the manufacturing partner to support the unit after delivery.
Typical Applications of Air-Cooled Chillers in the UAE
TABREED NEXUS air-cooled chillers are suitable for a wide range of commercial and industrial cooling applications, including:
Hotels and hospitality cooling plants
- Shopping malls and retail complexes
- Hospitals and healthcare facilities
- Schools and universities
- Factories and industrial facilities
- Onshore oil and gas installations
- Sewage treatment plants
- Commercial buildings and office towers
These are the applications specified in the approved management brief.
Is It Time to Replace Your Existing Chiller?
Cooling requirements change over time, and an ageing or incorrectly specified chiller can begin affecting comfort, energy consumption and operational reliability.
Some signs that it may be time to review your existing system include:
- Rising energy consumption despite no significant increase in cooling load
- Difficulty maintaining the required chilled-water set-point during peak summer temperatures
- Frequent breakdowns or repeated service requirements
- Extended downtime while waiting for replacement components
- A facility that has outgrown the capacity of its existing system
- An older chiller that was not designed for the ambient temperatures in which it is currently operating
A replacement decision should consider the actual cooling load, site ambient conditions, operating hours, required chilled-water temperatures and future capacity requirements.
Get In Touch
Tell us your requirements and attach any relevant photos, drawings, or specifications to help us review your enquiry accurately.
FAQ for Air Cooled Chillers
The TABREED NEXUS AC Series uses R134a refrigerant across the 44 to 468 TR nominal range.
Yes. The TABREED NEXUS is T3 tropical rated and has performance data covering high-ambient operation up to 52°C, making it suitable for demanding UAE and Gulf operating conditions.
No.
Al Tabreed sources and supplies the TABREED NEXUS AC Series from a trusted manufacturing partner.
Al Tabreed is the local point of contact in the UAE for unit supply, spare parts and after-sales support. This distinction is specifically required in the approved management brief.
Yes.
The TABREED NEXUS range includes 19 standard models, and configurations outside the standard range can be discussed based on the project's cooling load, site conditions and technical requirements.
The control system supports:
- BACnet IP
- Modbus RTU
- Modbus TCP/IP
- Johnson N2
Optional VPN-based remote monitoring is also available.
Al Tabreed's scope for the TABREED NEXUS includes unit supply, spare-parts sourcing and after-sales support.
Installation and Annual Maintenance Contracts are not part of Al Tabreed's TABREED NEXUS scope and should be handled by a qualified MEP contractor.
Typical applications include hotels, shopping malls, hospitals, schools and universities, factories, commercial buildings, onshore oil and gas installations and sewage treatment plants.
Chiller selection depends on factors such as:
- Required cooling capacity
- Site ambient temperature
- Leaving chilled-water temperature
- Water flow requirements
- Operating hours
- Installation conditions
- BMS and control requirements
Send Al Tabreed your project requirements, cooling load and site conditions, and our team can help identify the appropriate configuration.
Our Recent Installations
What Al Tabreed Provides?
Al Tabreed sources and supplies the TABREED NEXUS AC Series from a trusted manufacturing partner.
Our role is to give customers in the UAE and Oman a clear local point of contact throughout the supply and after-sales process.
-
Unit Supply -
We supply the TABREED NEXUS range across the UAE and Oman.
The range includes 19 standard models, while configurations outside the standard range can be discussed based on project cooling load and operating requirements. -
Spare Parts -
Al Tabreed can source spare parts through the TABREED NEXUS manufacturing partner, giving customers a local contact instead of requiring them to coordinate directly with an overseas manufacturer. -
After-Sales Support -
Our involvement does not end when the chiller is delivered.
If an issue arises after supply, customers can contact the Al Tabreed team and we will work with the manufacturing partner to support resolution.
See what’s Our Happy Clients are Saying
Download Our Catalouge
Fill in your details below and download our latest FCU catalouge instantly.
Speak to an Air-Cooled Chiller Specialist in the UAE
Selecting an air-cooled chiller is not simply a question of choosing a TR capacity from a table.
Ambient temperature, cooling load, chilled-water conditions, operating hours, available installation space, control requirements and future demand all influence the correct selection.
The TABREED NEXUS AC Series combines a broad 44 to 468 TR nominal cooling range with T3 tropical capability, screw-compressor technology, dual refrigeration circuits and BMS-ready controls for demanding UAE applications.
Tell us your application, cooling load and site conditions, and our team will help identify the appropriate TABREED NEXUS configuration for your project.
